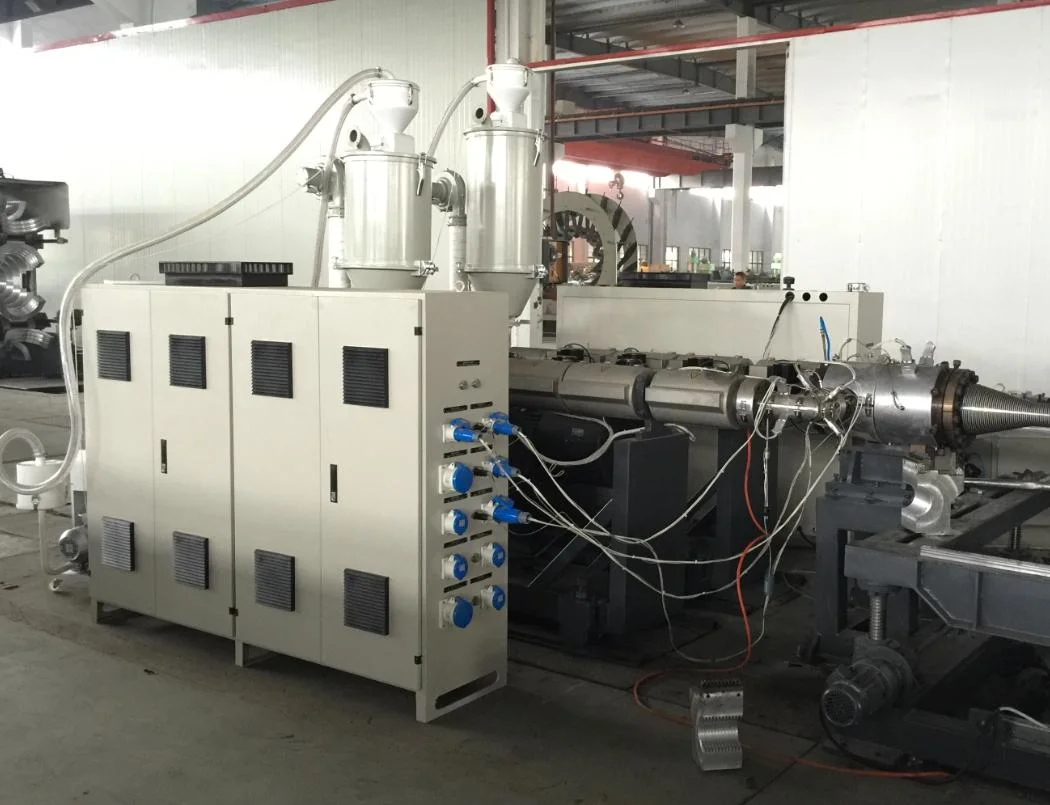

Adopt L/D ratio 38:1 screw for virgin material. Adopt L/D 33:1 screw for recycled material. We also have choice of twin screw and
barrel for other material such PP powder, etc. Provide suitable extruder for different customer requirements.

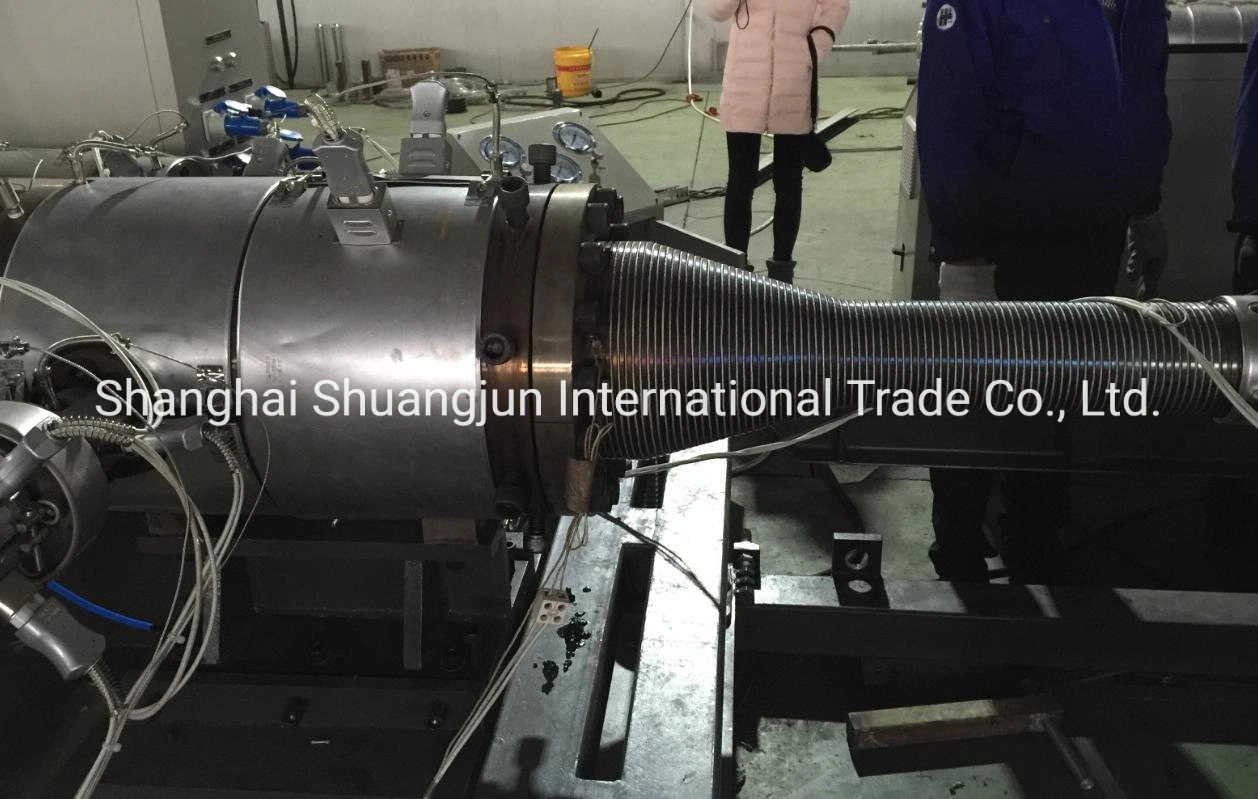

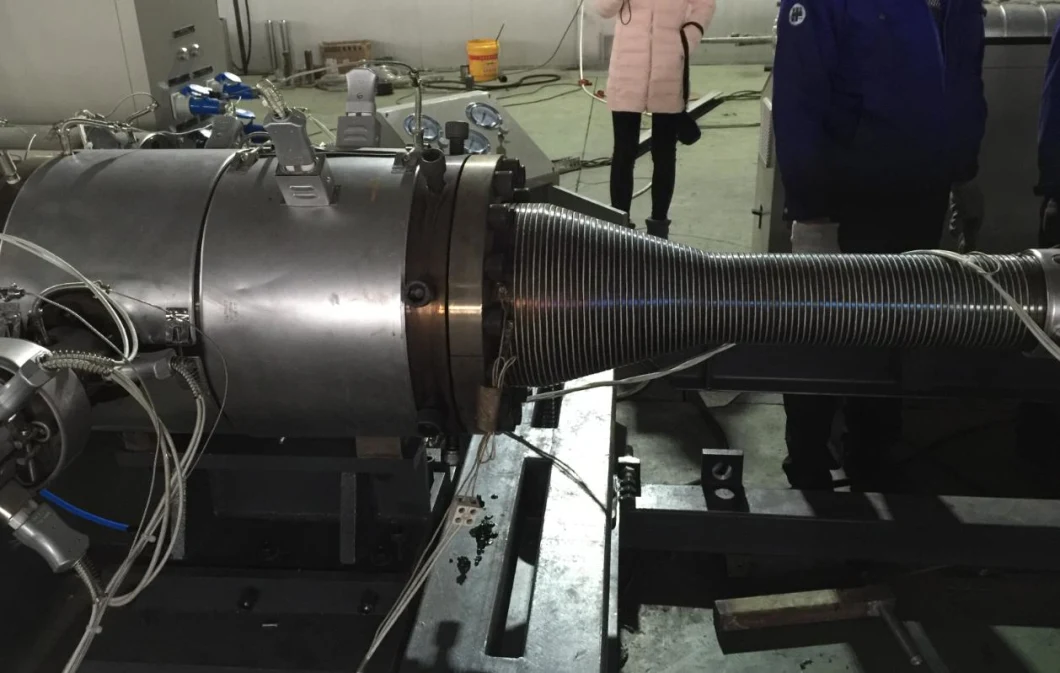

channel is after heat treatment and mirror polishing to ensure material flow smoothly. Also die head provides compressed air
between both layer.
Calibration sleeve is used to cool inner layer to form smooth and flat pipe inside. Pressure water flows inside calibration sleeve
to have good cooling effect. Vacuum is created on calibration sleeve surface when producing big diameter pipe, ensure inner pipe
roundness.

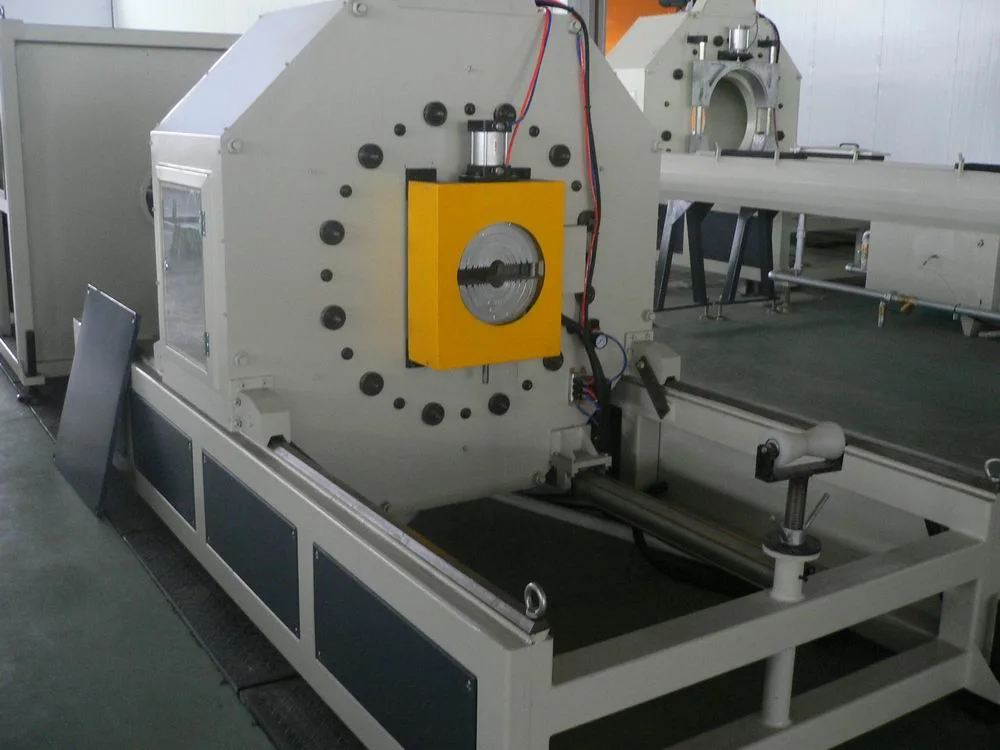

Cutter controlled by Siemens PLC, double knife cutter. Equipped with precise inspection device ensures the cutter accurately placing at the correct position of double wall corrugated pipe. Whole cutting process is accurate and fully automatic
To support and unload pipes. Length of stacker can be customized
|
Model
|
Pipe Range (mm)
|
Corrugator Type
|
Output Capacity (kg/h)
|
Main Motor Power (kw)
|
|
WPE160
|
63 – 160
|
Horizontal
|
400
|
55+45
|
|
WPE250
|
75 – 250
|
400 – 520
|
(55+45) – (75+55)
|
|
|
WPE400
|
200 – 400
|
740 – 1080
|
(110+75) – (160+110)
|
|
|
LPE600
|
200 – 600
|
Vertical / Shuttle
|
1080 – 1440
|
(160+110) – (200+160)
|
|
LPE800
|
200 – 800
|
1520 – 1850
|
(220+160) – (280+200)
|
|
|
LPE1200
|
400 – 1200
|
1850 – 2300
|
(280+200) – (355+280)
|
FAQ:
Q1:Are you a factory or trading company?
A1:We are a manufacturer and trading company. We have our own R&D department and top professional technical engeneer.
Q2:Can we visit your machine operation in your factory?
A2:You can see machine operation in our factory.
Q3:Can the machine be customized?
A3:Yes, it can, such as voltage, frequency.
Q4:How many electric, water, air need for the machines?
A4:Technical department supply the whole layout for workshop details.
Q5:Can I operate machine if don’t have experienced engineers?
A5:(1) Short-time engineers to customer company (5-15days)
(2) Year-time working as requirements
Q6:Any quality checking before shipment?
A6:100% confirm, run and test machines before shipment with quality certificate.
Q7:How long is the guarantee?
A7:12 months since the first day customer operates (except wear parts)
Q8:How can u help us when face some technical problem?
A8:24 hours by e-mail, message, calling. If problems happens need engineer we will arrange the closest or agent in local country,
or send Chinese Engineers to solve in 2 weeks.
Q9:Where can we get spare part?
A9:We choose International Brand that customer can find it in everywhere, such as Siemens, Schneider, Omron, Delixi etc, or send
parts by DHL, Fedex, TNT and other express.
