Single And Double Wall Corrugated Drainage Pipe Extruder, PE PVC Plastic Pipe Making Machine

Single and double wall corrugated drainage pipe extruder, PE PVC plastic pipe making machine

Single Double Wall Corrugated Drainage Pipe Extruder, PE PVC Plastic Pipe Making MachineIntroduction:1.This production line can be used to produce corrugated pipes of PE,PP,PVC,EVA continuously,as well as PA corrugated pipes.2.Plastic singl

Single Double Wall Corrugated Drainage Pipe Extruder, PE PVC Plastic Pipe Making Machine

Introduction:
1.This production line can be used to produce corrugated pipes of PE,PP,PVC,EVA continuously,as well as PA corrugated pipes.
2.Plastic single wall corrugated pipes have features of high temperature resistance, resistant to corrosion and abrasion, high intensity, good
flexibility, etc

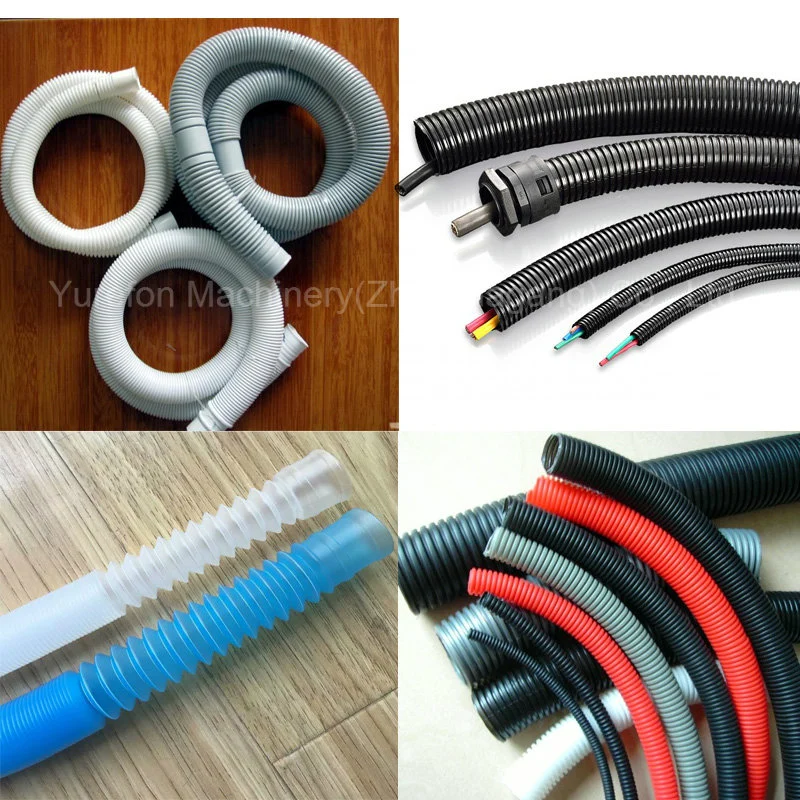

3.They are widely used in fields of auto wire, electric thread passing pipes, circuit of machine tool, protective pipes of lamps and lanterns wire, tubes of air conditioner and washing machine, etc

Features:
Fully PLC controlled mahine
High and stable extrusion capacity
Corrugator mould one mould two size
Good water cooling or air cooling system

Production Flow:
Raw material + master batches→mixing→vacuum feeding →material dryness →single screw extruder→extrusion mould→corrugation forming machine→meter measurer→double winder→finished product inspecting &packing

Technical Parameters:

Material	Machine model	Extruder	Pipe diameter(mm)	Production speed(m/min)
PE/PP	SNDPG-25	SJ45/30	φ11mm-φ25mm	20
	SNDPG-63	SJ55/30	Φ25mm-φ63mm	10
	SNDPG-90	SJ65/30	Φ50mm-φ90mm	5
PVC	SNDPG-63	SJZ51/105	Φ25mm-φ63mm	5
PVC	SNDPG-110	SJZ65/132	Φ50mm-φ110mm	3

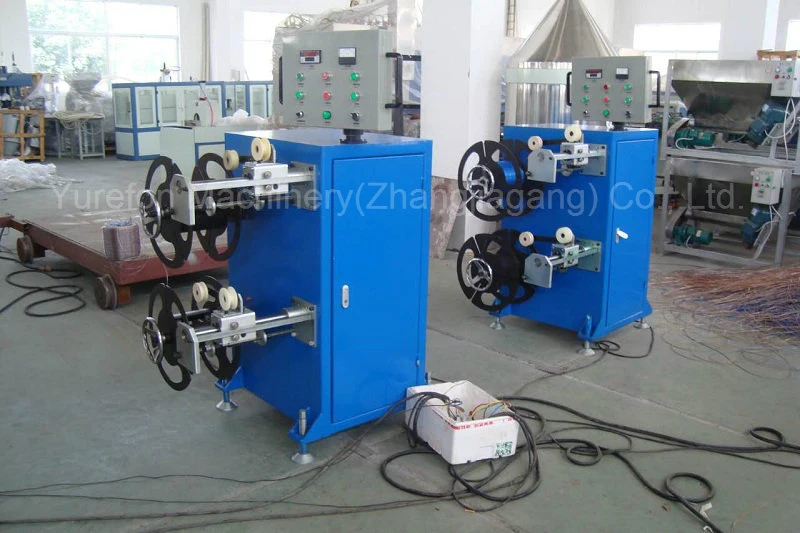

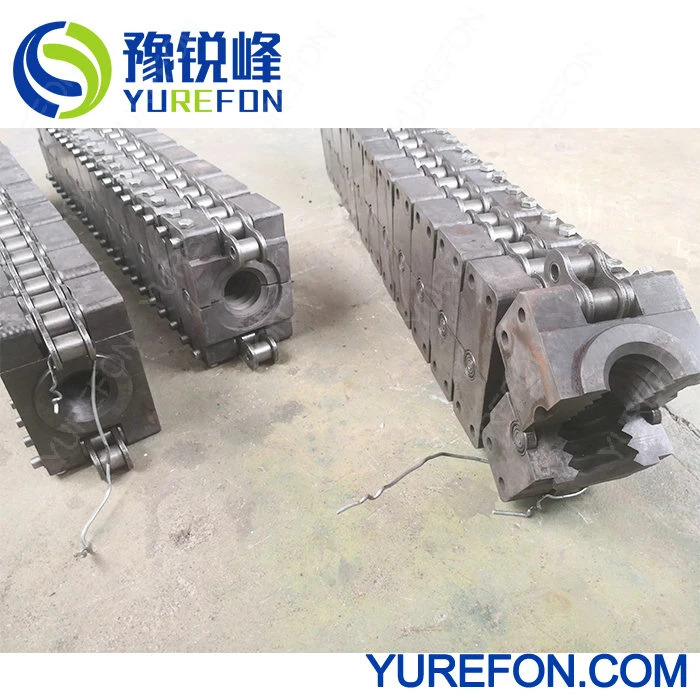

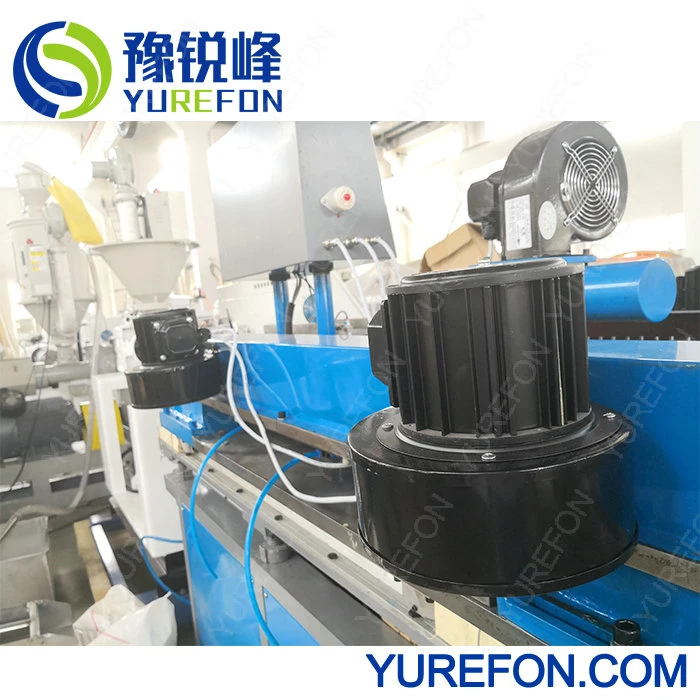

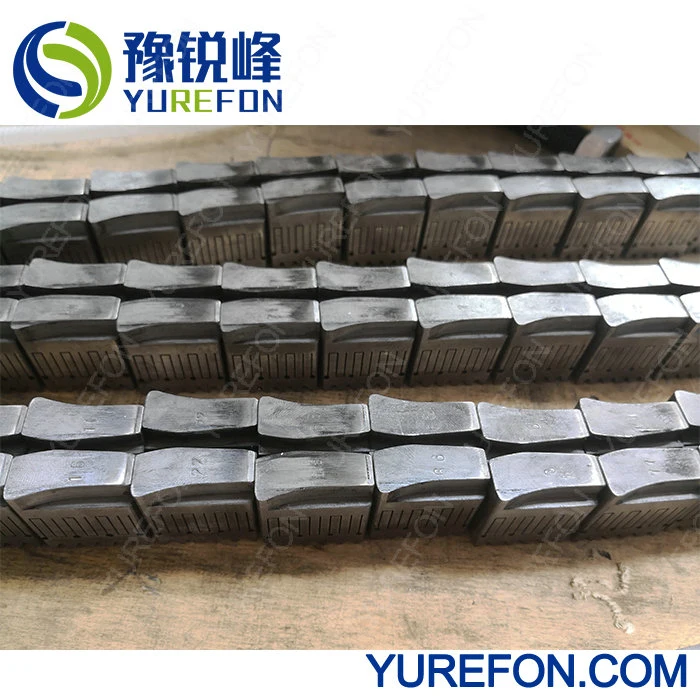

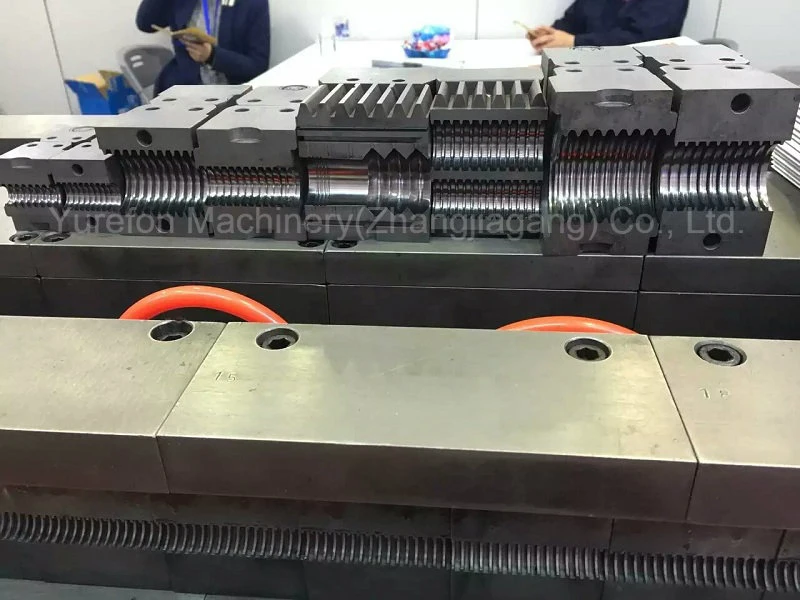

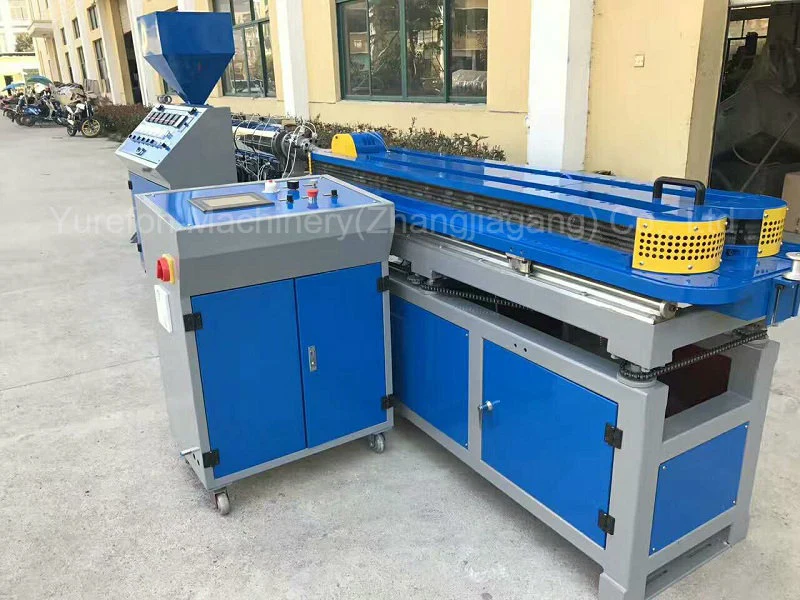

Machine Pictures:
