pvc conduit pipe machine price list Introduction:

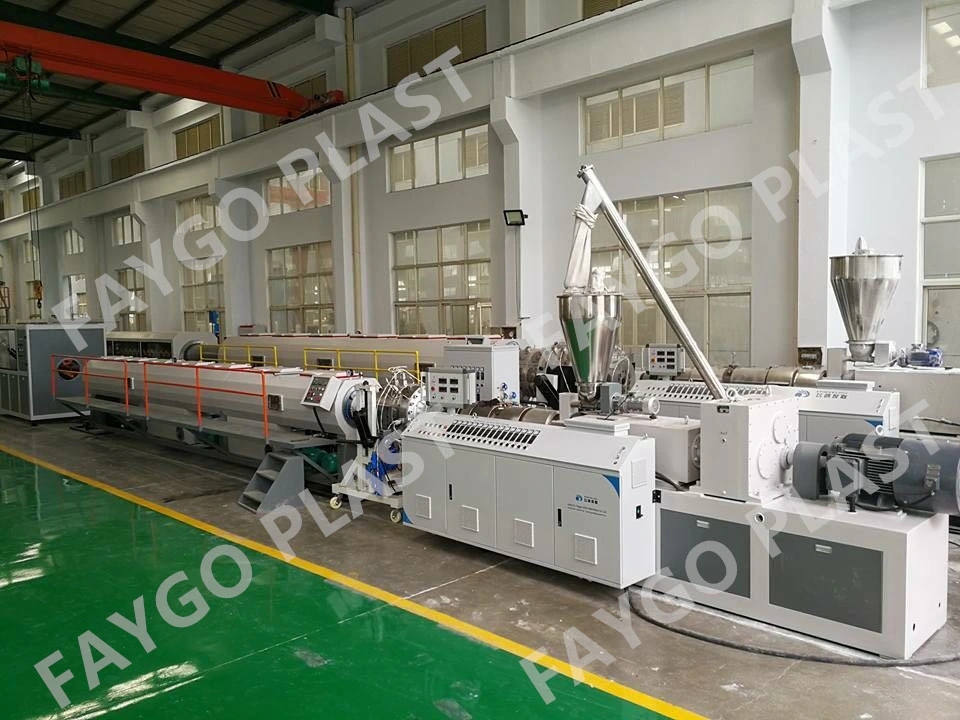

1) The pvc conduit pipe machine price list include one double screw extruder SJZ65, Mould based on pipe diameter, Vacuum Tank, Haul-off& cutter, Stacker.
2) On this full line, you must with one system called die core temperature adjust system, and must be with water cooling, as CPVC has special chemical character than UPVC;
3) For pvc conduit pipe machine price list, the capacity can be 150kg/h, 200kg/h, 300kg/h and 500kg/h, you can choose them based on your needs, then we will suggest the satisfied extruder and auxiliary machines;

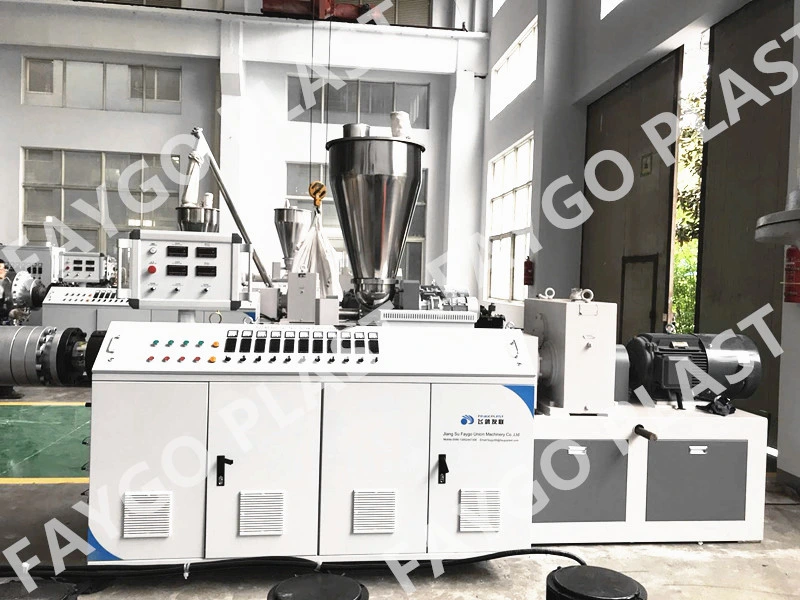

You can check different capacity of extruder from below form:
| Model | SJZ51 | SJZ55 | SJZ65 | SJZ80 | SJZ92 |
| Screw Dia.(mm) | 51/105 | 55/110 | 65/132 | 80/156 | 92/188 |
| Max.Speed(rpm) | 40 | 38 | 38 | 37 | 36 |
| Main Motor(kw) | 18.5 | 22 | 37 | 55 | 90 |
| Output(kg/h) | 80-100 | 100-150 | 150-250 | 250-380 | 380-700 |
| Center Height(mm) | 1050 | 1050 | 1050 | 1050 | 1100 |
| New Weight(kg) | 3000 | 3500 | 4000 | 5500 | 8000 |
| L*W*H(m) | 3.6*1.1*2.1 | 3.6*1.1*2.1 | 4.2*1.5*2.4 | 4.7*1.5*2.4 | 6*1.6*2.5 |
CPVC Pipe advantages below:
CPVC pipe has the same characteristic with PPR pipes, it can undertake high temperature. So in future this CPVC pipe can instead the PPR pipe market.
If you are interested on our CPVC pipe machine, please contact me freely below:
