Fiberglass Roof Sheet/Roof Panel/Skylight Panel
FRP roofing is usually used as a protecting facility in construction site,steel structured workshop and warehouse,canopy,packing sheds,corridors,studio light awning and greenhouse ect as the excellent light transmittance.
Fiberglass roof is the more strengthened, safety and more economical greenhouse panel with the properites of waterproof,good light transmittance, heat insulation, strong impact resistant, withstand extreme temperature.
Materials: fiberglass-reinforced plastic, continuous forming by machine
Normal thickness:1.2mm,1.5mm,2.0mm,2.2mm,2.5mm,3mm ect.

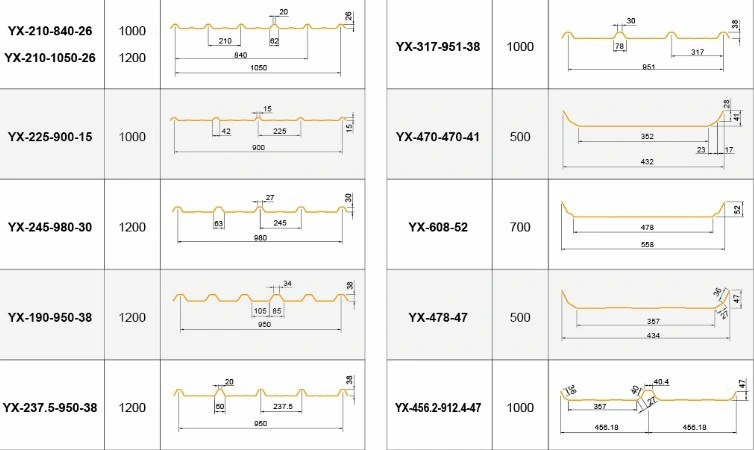

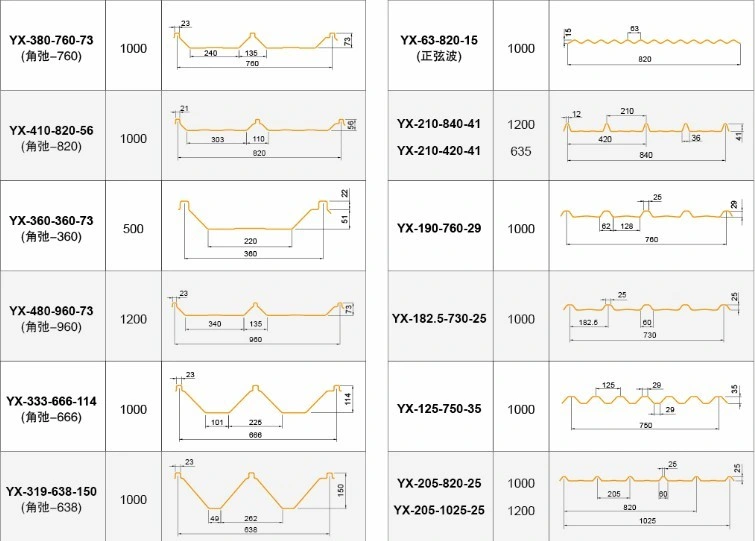

Some of our available model:
also can making according to your metal sample or drawing.
Type:
General standard type
Industrial workshop and warehouse, large Store, stadiums, residential community, etc.
| Item | Flexural strength |
Tensile strength |
Density |
Barcol hardness |
Heat distortion temperature |
Thermal conductivity |
| experimental results |
190MPa | 103MPa | 1.4g/cm³ | 50 | 168ºC | 0.158W/M.K |
weathering resistance type
Coastal area, Heavy-polluted industrial zones, and high UV places.
| Item | Flexural strength |
Tensile strength |
Density |
Barcol hardness |
Heat distortion temperature |
Thermal conductivity |
| experimental results |
190MPa | 103MPa | 1.4g/cm³ | 50 | 170ºC | 0.158W/M.K |
secondary flame retardant type
Industrial workshop and warehouse that demand flame retardant.
| Item | Flexural strength |
Tensile strength |
Density |
Barcol hardness |
Heat distortion temperature |
Thermal conductivity |
| experimental results |
183MPa | 100MPa | 1.45g/cm³ | 50 | 160ºC | 0.158W/M.K |
first-class flame retardant type
Steel plant, blast furnace and other factories that have fire retardant.
| Item | Flexural strength |
Tensile strength |
Density |
Barcol hardness |
Heat distortion temperature |
Thermal conductivity |
| experimental results |
198MPa | 105MPa | 1.48g/cm³ | 50 | 168ºC | 0.158W/M.K |
scatter-type
Glass production plant, textile workshop, and precision machining factories and other light demanding working environment, commercial building.
| Item | Flexural strength |
Tensile strength |
Density |
Barcol hardness |
Heat distortion temperature |
Thermal conductivity |
| experimental results |
190MPa | 103MPa | 1.4g/cm³ | 50 | 168ºC | 0.158W/M.K |
heat insulation style
Plaza, warehouse and commercial building.
| Item | Flexural strength |
Tensile strength |
Density |
Barcol hardness |
Heat distortion temperature |
Thermal conductivity |
| experimental results |
175MPa | 103MPa | 1.4g/cm³ | 50 | 168ºC | 0.158W/M.K |
corrosion-resistant type.
Above range application factories, we suggest the wall and roof should be all installed by our anti-corrosion panel and joints be sealed by Butyl tape
| Item | Flexural strength |
Tensile strength |
Density |
Barcol hardness |
Heat distortion temperature |
Thermal conductivity |
| experimental results |
130MPa | 95MPa | 1.65g/cm³ | 50 | 168ºC | 0.158W/M.K |
Features:
1) The fiberglass content about 27%-30%.
2) Weather resistant and Self-clean ability
3) Excellent yellowness resistance
4) Strong impact resistant and low bending rate
5) Withstand extreme temperature from -38 degree to +110 degree for a long time
6) Aging resistant: specified F4 film added on surface and gel coat makes it endurable for long.

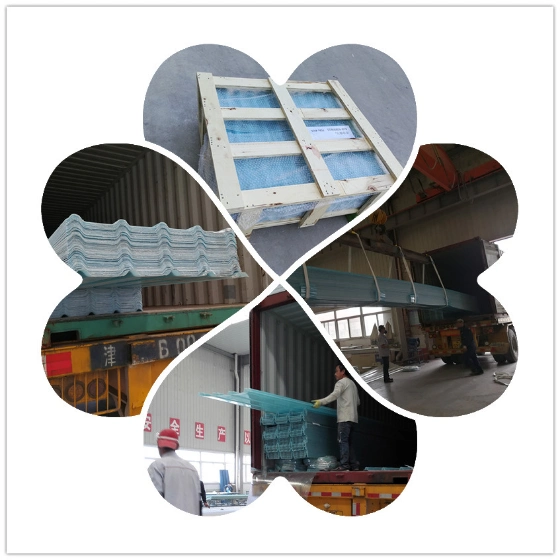

Packing&SHIPPING:
